Speakers and Music Amplifiers
SPEAKERS AND MUSIC AMPLIFIERS
Captivate your audience with ADI’s portable speaker system and instrument amplifiers. Its exceptional sound quality, versatility, and convenience make every performance an unforgettable experience for both you and your audience. Elevate your music to new heights and conquer every stage with this ultimate partner for musicians and buskers.
T1 Series
Ultra Portable Speaker System
Introducing the ADI T1 Series Ultra Portable Speaker System, your ultimate sound companion for Home, Performances, and Studio Environments.
The ADI T1 Series is a versatile and powerful audio solution designed to enhance your sound experience in multiple settings. Whether you’re at home, performing on the streets as a busker, or working in a professional studio, this system delivers exceptional audio quality and convenience in one portable package.

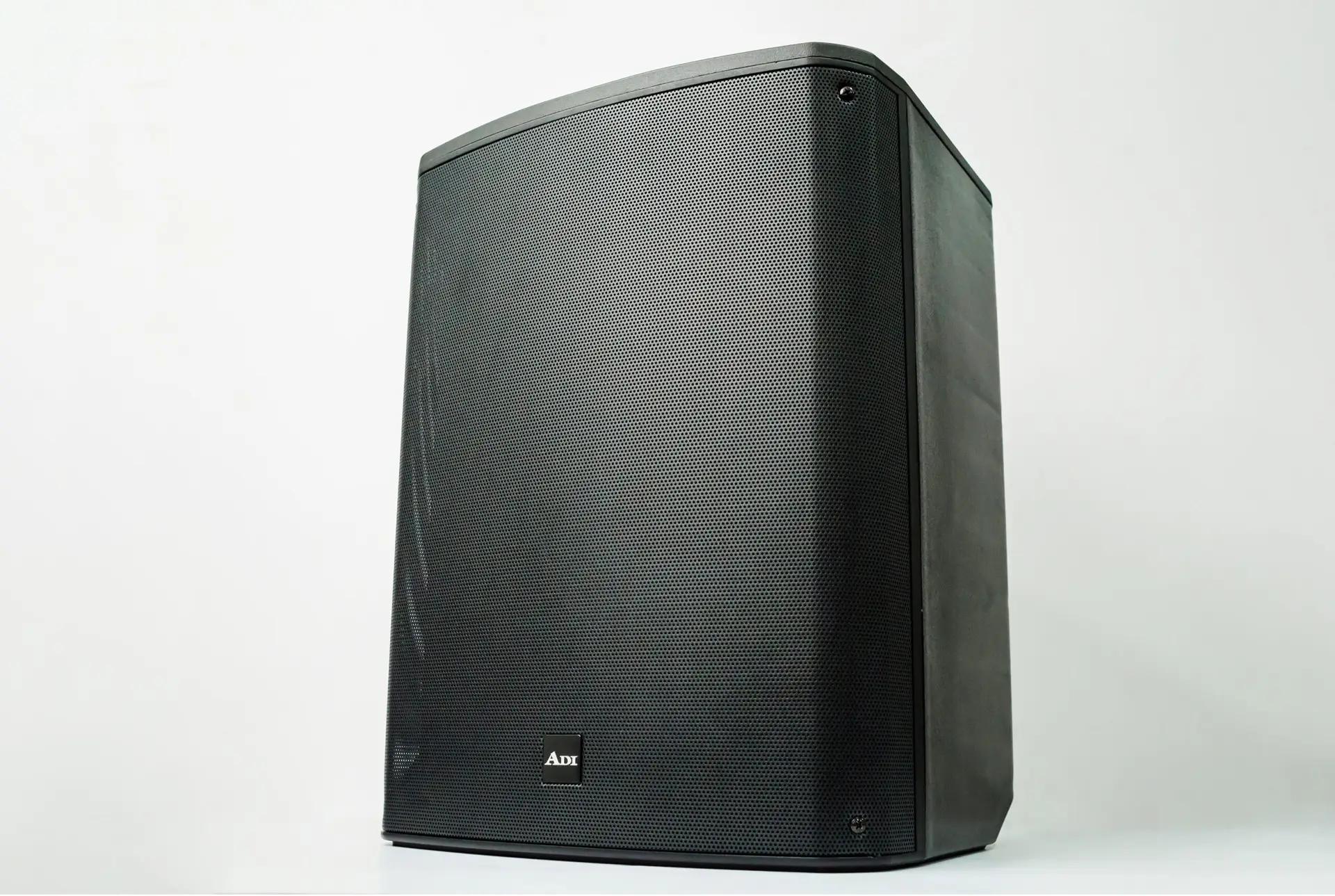

T1 Series MAX
Type: 2-way Configuration With Active Filter
Subwoofer: 10″x1, 1.5” VC
Satellite: 3″x 4 Neodymium Full Range Speaker
Mic or Instrument Input: XLR or 1/4″ TRS (2-Way)
EQ: 80Hz, 12kHz
Line In: XLR or 1/4″ TRS
Aux In: 1/8″ TRS
Line out: 1/4″ TRS
Amplifier: Class D, DSP processor, Reverb, stereo Bluetooth, USB input, USB charging
Freq Resp: 55Hz-18KHz
RMS Power: 150W
MAX Power: 300W
Battery: 18.5V/5AH (Lithium – ion)
Power Voltage: AC100V – AC240V
Dimensions (W x D x H): 344 x 363 x 473mm
Net weight (kg): 12.5
T1 Series MINI
Type: 2-way Configuration With Active Filter
Woofer: 6.5″ Coaxial Speaker
Mic or Instrument Input: XLR or 1/4″ TRS (2-Way)
Line In: XLR or 1/4″ TRS
Aux In: 1/8″ TRS
Line Out: 1/4″ TRS
Amplifier: Class D, DSP processor, Reverb, stereo Bluetooth, USB input, USB charging
Freq Resp: 55Hz-20KHz
RMS Power: 100W
MAX Power: 200W
Battery: 14.4V/5AH (Lithium – ion)
Power Voltage: AC100V – AC240V
Dimensions (W x D x H): 248 x 284 x 332mm
Net weight (kg): 6.25
GN Series
Power Output:
Input:
Output:
Speaker:
Input Sensitivity:
Noise:
Controls:
Dimension:
Weight:
GN 15 Guitar Amplifier
15W RMS @ 1.0% THD INTO 8Ω
1 X Guitar Input, 1 X Aux In
1 X Aux Out, 1 X Phones
1 X 6.5” 8Ω
Normal 30mV, F=1KHz, Volume & Tone Max
-40dB (Gain Max) , -65dB (Gain Min)
Level (Gain), Drive S/W, Bass, Middle, Treble, Volume (Master), Delay Level, Delay, Power S/W
W 320 X H 253 X D 185 (mm) ( 12.6’’ X 10.0” X 7.3’’)
4.6Kg

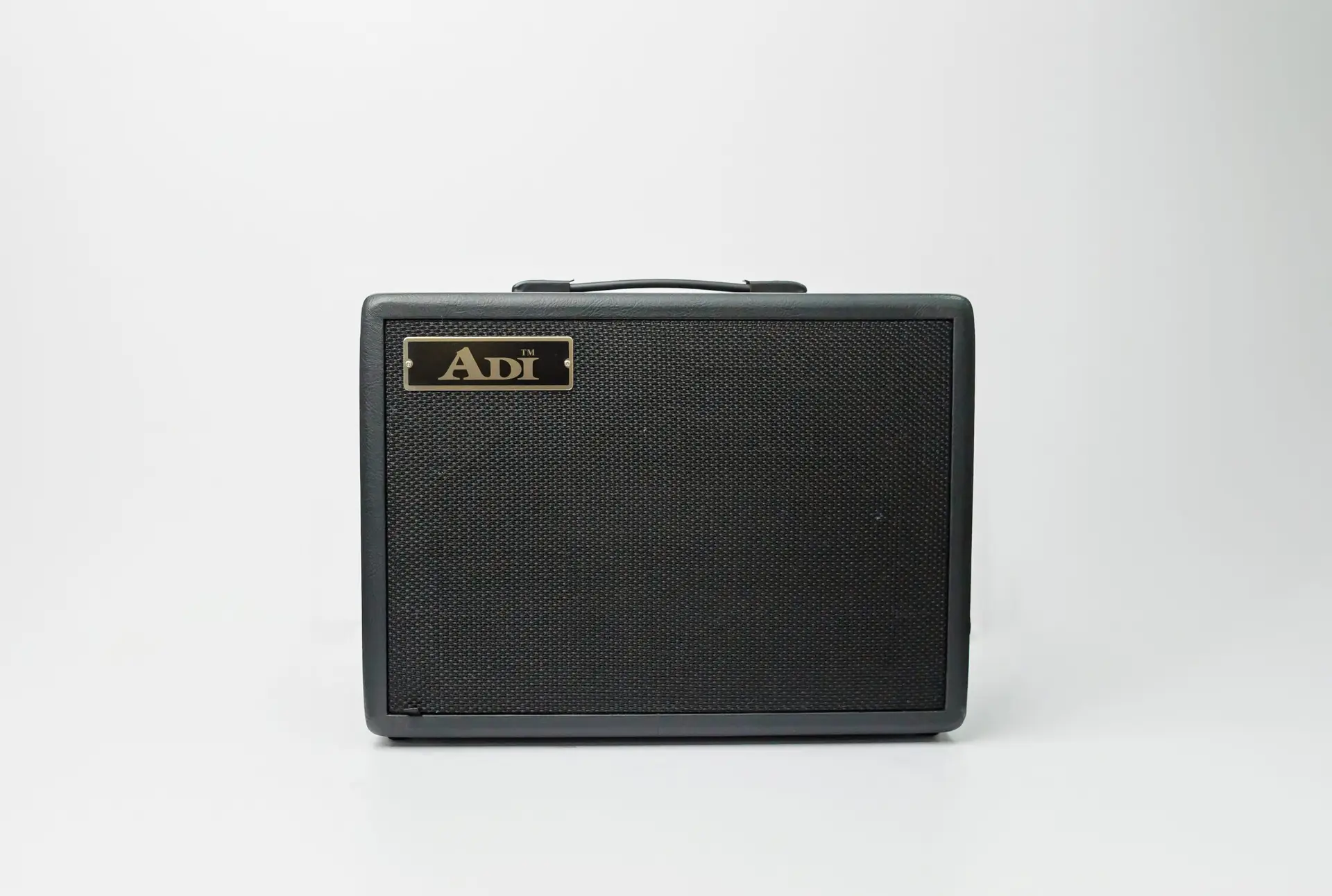

GN 30 Guitar Amplifier
30W RMS @ 1.0% THD INTO 8Ω
1 X Guitar Input, 1 X Aux In
1 X Aux Out, 1 X Phones
1 X 8” 8Ω
Normal 30mV, F=1KHz, Volume & Tone Max
-38dB (Gain Max) , -65dB (Gain Min)
Level (Gain), Drive S/W, Bass,Middle, Treble, Volume (Master), Delay Level, Delay, Power S/W
W 390 X H 300 X D 200 (mm) (15.4’’ X 11.8” X 7.9’’)
6.85Kg
BN Series
Power Output:
Input:
Output:
Speaker:
Input Sensitivity:
Noise:
Controls:
Dimension:
Weight:

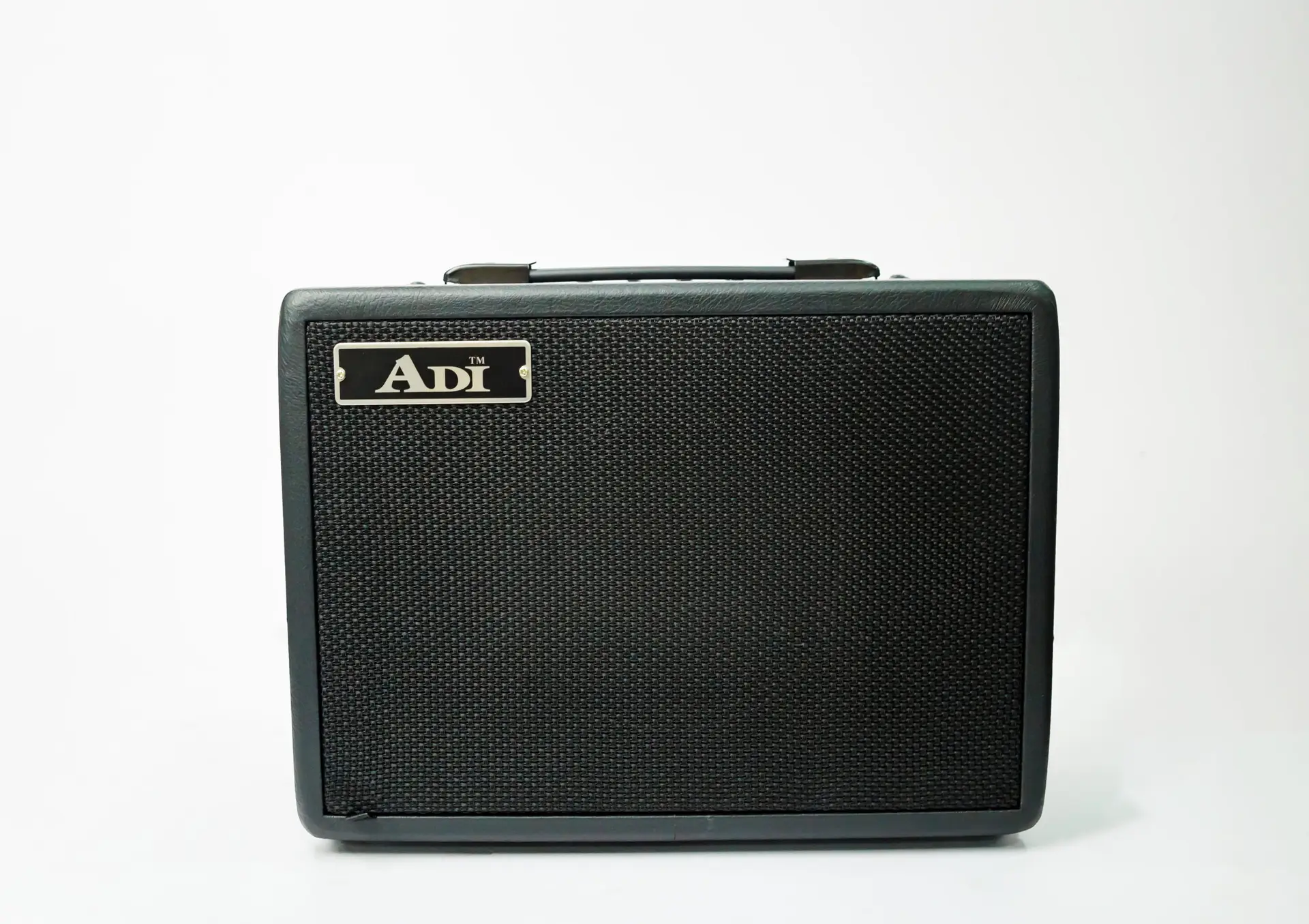

BN 15 Guitar Amplifier
15W RMS @ 1.0% THD INTO 8Ω
1 X Bass Input, 1 X Aux In
1 X Aux Out, 1 X Phones
1 X 6.5” 8Ω
Normal 30mV, F=1KHz, Volume & Tone Max
-40dB (Gain Max) , -65dB (Gain Min)
Level (Gain), Drive S/W, Bass, Middle, Treble, Volume (Master), Delay Level, Delay, Power S/W
W 320 X H 253 X D 185(mm) ( 12.6’’ X 10.0” X 7.3’’)
5.38Kg
BN 30 Guitar Amplifier
30W RMS @ 1.0% THD INTO 8Ω
1 X Bass Input, 1 X Aux In
1 X Aux Out, 1 X Phones
1 X 8” 8Ω
Normal 30mV, F=1KHz, Volume & Tone Max
-38dB (Gain Max) , -65dB (Gain Min)
Volume (Master), Level (Gain), Comp S/W, Bass, Middle (Frequency, Level), Treble, Power S/W
W 390 X H 300 X D 200 (mm) (15.4’’ X 11.8” X 7.9’’)
7.6Kg
