Background Music
BACKGROUND MUSIC | PAGING | INSTALLED SOUND
Whether you are looking to set a relaxing ambiance for your spa, create a lively atmosphere for your restaurant / coffee bar, or use this as a paging system for offices, train stations and hospitals, these speakers provide crystal-clear background music that elevates the overall customer experience.
Ideal for commercial establishments like restaurants, hotels, gyms, schools, malls, cafes, bars and offices.
ADI M-FOUR
Installation Wall Mount Multi Channel Amplifier
This elegant wall-mount amplifier is designed to be installed in commercialspaces such as restaurants, bar, fitnesscenters and other commercial spaces.
FEATURES:
- built-in mixer with 5 channels
- independent volume control
- USB playback
- Bluetooth
- FM radio player
- Built-in four 80W RMS class AB amplifiers
- No high-frequency interference
- Minimal sound distortion
- Internal limit circuit can further limit the distortion in a large dynamic range.
- LINE OUT interface for external expansion
- FOUR amplifier has 4 inputs with RCA and 1/4″ TRS connectors
- can be switched to microphoneor line input
- Each channel has independent volume control and independent EQ settings
TECHNICAL SPECIFICATION
Type: Installation multi channels amplifier
Amplifier: 4 x AB-class 80W RMS @ 8Ω
MIC Input: -35dB / 2KΩ
LINE Input: -3dB / 20KΩ
LINE Output: +3dB
EQ: Low & High: +/- 12dB
Functions / Controls: Level per channel / Low & High for each output / USB / FM / Bluetoothplayer
Power Voltage: AC115 or AC230V
Power Consumption: 180W
Dimensions (W x D x H): 384 x 95 x 474mm
Net Weight (kg): 8.5
ADI LSP-4
Ceiling Installation Mini Array Speaker
We frequently encounter large professional linearrays in huge venues and concert hallsdesigned for performances targeting largeaudiences.
Upon examining the structure of line arrayspeakers and their technology, we came up withthis mini line array specifically tailored forsmaller spaces or gatherings.
Its niche and distinctive appearance, coupledwith an elegant and trendy creamy white color,set it apart.
FEATURES:
- 4” woofer with a strong bass and a wide frequency band
- 2.5” tweeter with a clear and highpitched sound
- The internal frequency divider uses high-quality oxygen-free copper inductance and high-performance
polyester capacitors - Four cabs are designed as a set
- Available in passive and active versions
- The active power amplifier use 120W x 2 CLASS D switching power supply
- power indicator
- Bluetooth indicator
- Power input
- Standby switch
- LINE IN and LINE OUT
- Balance input on the back.
TECHNICAL SPECIFICATION (ACTIVE)
Type: Ceiling installation Mini array active speaker
HF Driver: 8 x 1″ DRIVER,0.8″VC
LF Driver: 4 x 4″,1″VC
Line In: RCA or Euroblock
Line out: RCA
Can Link out to passive speaker Amplifier: Class D, Bluetooth
Frequency Range: 80Hz-20KHz
Rated Power: 2 x 120W
Max Power: 2 x 240W
Sensitivity: 96dB(1W/1m)
MAX SPL: 105dB / 119dB (Peak)
Power Voltage: AC100V – AC240V
Dimensions (WxDxH): 210 x 170 x 553mm
Net Weight (Kg): 6.5
TECHNICAL SPECIFICATION (PASSIVE)
Type: Ceiling installation Mini array passive speaker
HF Driver: 8 x 1″ DRIVER,0.8″VC
LF Driver: 4 x 4″,1″VC
Frequency Range: 80Hz-20KHz
Nominal impendance: 4 OHM
Rated Power: 100 W
Max Power: 300 W
Sensitivity: 96dB(1W/1m)
MAX SPL: 105dB / 119dB (Peak)
Connectors: Side connectors ( + push connectors in the top holder module)
Dimensions (W x D x H): 210 x 170 x 553mm
Net Weight (Kg): 6

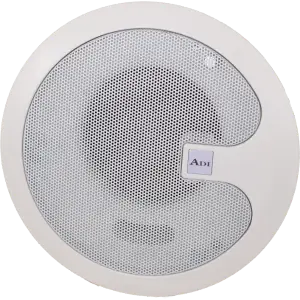

CEILING SPEAKERS
CSP-6T
CSP-5T
CSP-4BRT
Type:
Power ( RMS):
Power (Max.):
Freq. Response:
Max SPL (PEAK):
Input connector:
Dimensions (w/ Bracket):
Diameter:
Weight(Kg):
CSP - 6T
70-100V line
40W
80W
60Hz-20KHz
119dB
Push connector
245x245x130mm
211mm
2.3
CSP - 5T
70-100V line
25W
50W
65Hz-18KHz
117dB
Push connector
214x214x113mm
178mm
1.8
CSP- 4BRT
70-100V line
15W/30W
30W/60W
90Hz-18KHz
116dB
Push connector
203x203x155mm
178mm
1.5

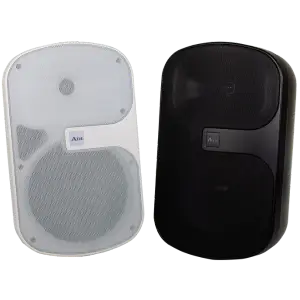

WALL SPEAKERS
WSP-4T
WSP-5T
WSP- 8T
Type:
Power ( 70 V):
Power (100 V):
Freq. Response:
Max SPL ( PEAK):
Input connector:
Dimensions (w/ Bracket):
Weight(Kg):
WSP - 8T
770-100V line
5W/10W/20W/40W
10W/20W/40W/80W
55Hz-20KHz
120dB
Euroblock / screw terminal
240x335x390mm
5.5
WSP - 5T
70-100V line
2.5W/5W/10W/20W
5W/10W/20W/40W
70Hz-20KHz
115dB
Euroblock / screw terminal
170x282x365mm
3.2
WSP- 4RT
Passive 2-way
40W
80W
F 80Hz-20KHz
113dB
Euroblock / screw terminal
145x247x295mm
2.5
SUBWOOFERS
SUB 8
RXA15 H-40
SUB 8
TECHNICAL SPECIFICATION:
LF Driver: 8″ woofer ,1.4″ VC
Amplifier: CLASS D
FREQ RESP: 70Hz-120Hz
Low-pass filter: Low-pass filter select switch
Functions/Controls: Phase select switch, input level, Low-pass, Stand-by (Auto power)
Line In: XLR or 1/4”Jack, RCA, Euroblock
BALANCED INPUT AMP. POWER: 120W RMS
MAX POWER: 300W
MAX SPL: 113dB / 122dB (Peak)
Dimensions (W x D x H): 445 x 160 x 400mm
Net weight: 8kg
