Conference Systems
CONFERENCE SYSTEMS | DIGITAL AND WIRELESS
Whether you’re hosting a small team meeting or a large conference, ADI’s conference systems is the perfect solution
for businesses and organizations looking to host virtual meetings, webinars, and remote collaborations.

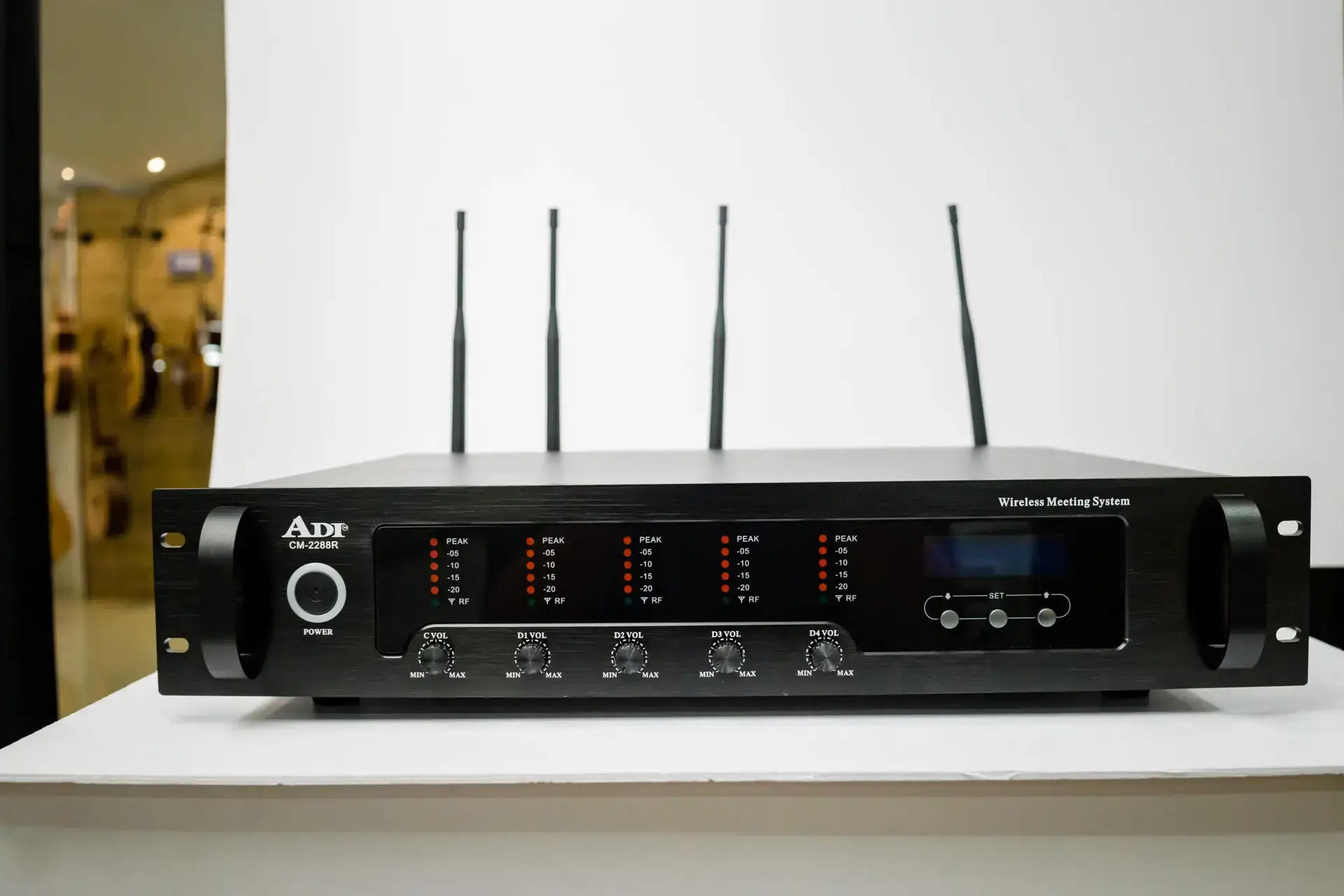

ADI CM2288R
WIRELESS SYSTEMS
Engage in collaborative conversations and let your ideas be heard. The ADI CM228R Wireless Conference System is the perfect wireless solution for your conference hall or meeting room. Its compact, wireless, and user friendly making it ideal for any meeting room, small-scale conferences, and mobile conference systems.
FEATURES:
- Quick and easy installation
- Can connect up to 1000 microphone
units with 5 microphones turned on at the same time - Wireless communication system
- Built-in feedback eliminating technology
- The built-in multiple noise detecting circuit
- The tone-lock system makes sure that the system has strong antijamming functions.
Battery life: 8 hours (in use) and 30 hours (stand by) - Operating distance is up to 100 meters with the best conditions and 60 meters under normal conditions
MAIN CONTROLLER
Support Mode: Limit (1/2/3/4), FIFO (1/2/3/4), Chairman Only
Support video camera auto-track with video processor via RJ45interface.
160×32 dot matrix LCD display system information
Receiver can control the microphone status when powered off, such as clear or shutting off all microphones.
Designed accordance to UL, CE and RTTE standards
Installation: 2U, 19-inch frame
CM2288B – BATTERY
CHARGING UNIT
Charges 16 PCS of lithium battery per charging.
Intelligent charging management electro circuit to protect the LIP battery.
Equipped with extendable handle and pulley, easy for moving.
CM2288C – CHAIRMAN
CM2288D – DELEGATES
Priority function switches all other mics off when chairman switches his mic on
LCD display shows battery level, mic ID, micstate,
LED ring on gooseneck mic
Microphone will switch automatically into standby mode if the receiver is powered off
Condenser microphone (talking distance: 20 -50cm max.)
Powered by a LIP battery (incl.)
Operating time 8-24hours

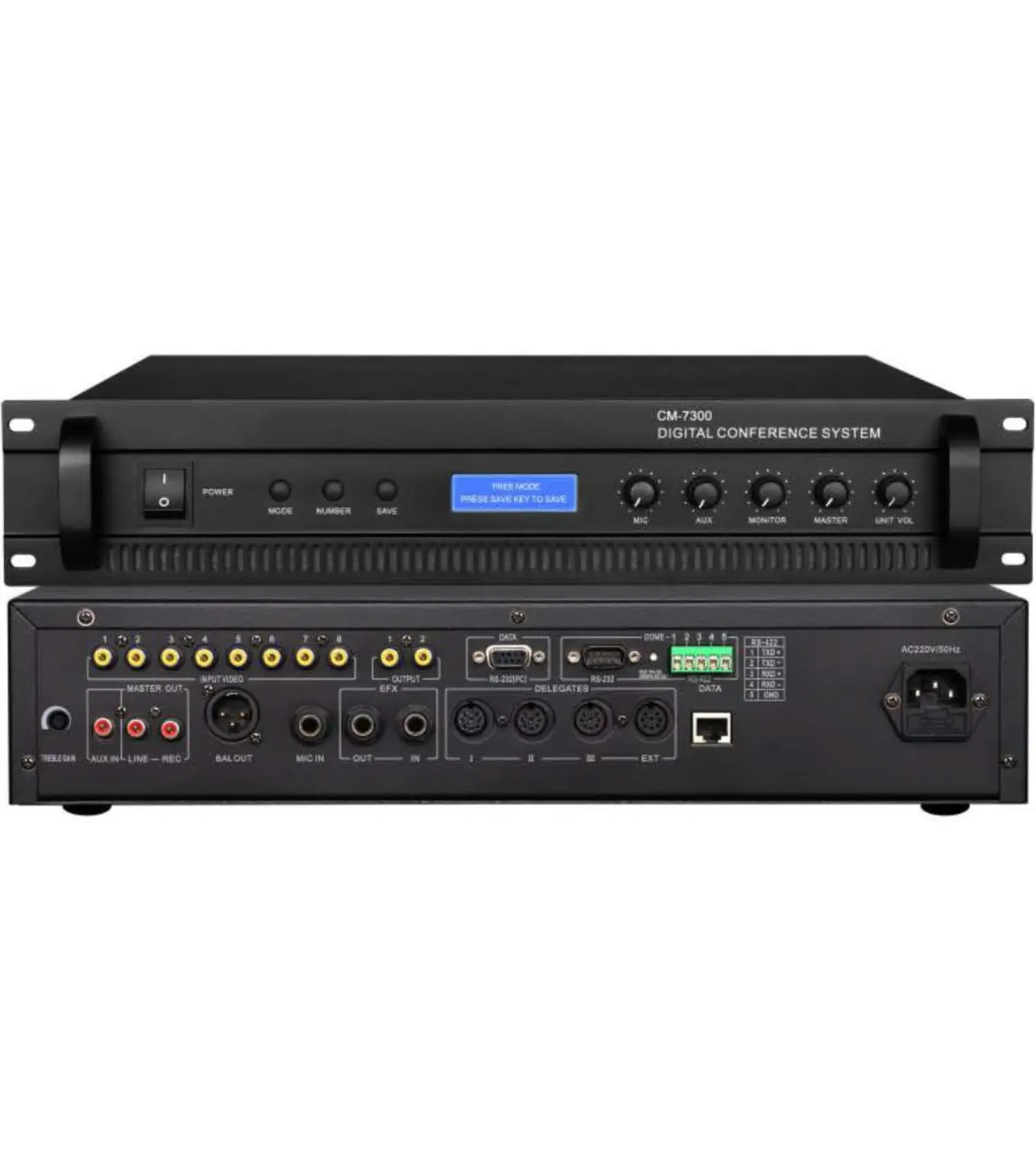

ADI CM7300
DIGITAL CONFERENCE SYSTEM
FEATURES:
- Rated power: 400W
- Can support 60 units and can extend up to 240 unit
- Multiple conference mode: Free, FIFO (1-9 microphone unit), Limit (1-9 microphone unit)
- Support Video camera auto-track function
- Support PC management or host working independently
- Built-in 1.5W monitor speaker with volume control power supply:
AC 220V－240V～ 50Hz-60Hz
ADI CM7300
DIGITAL CONFERENCE SYSTEM
MICROPHONE FEATURES
Unidirectional electret MIC
Annular red indicator lamp
Priority button: Chairman unit can turn down delegate MIC by pressing the priority button
ON/OFF button
Voting (Yes/No/Abstain)
Electing (Candidate 1-5)

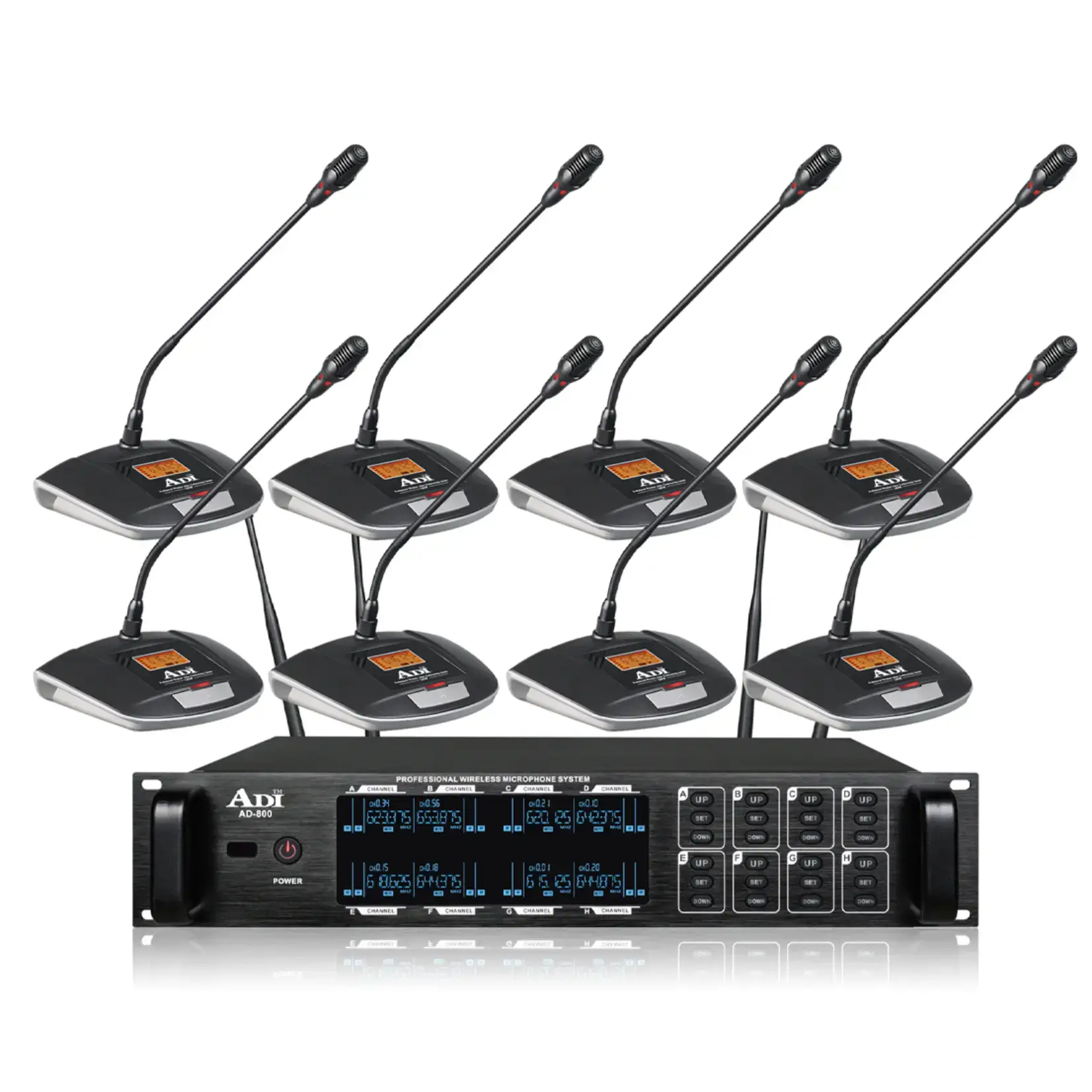

ADI CM800
DIGITAL CONFERENCE SYSTEM
TRANSMITTER:
Frequency Range:
780~820 MHz
740~820 MHz
615~665 MHz
Harmonic Radiation: < -63dBm
Band Width: 80MHz
Maximum Input Pressure: 130dB SPL
Current Consumption: < 110 mA
Maximum Transmitter Power: 30 mW
Frequency Range: 50Hz-18KHz
Power Supply: 2×1.5 V AA Battery
ADI CM800
DIGITAL CONFERENCE SYSTEM
RECEIVER:
Frequency Range:
780~820 MHz
740~820 MHz
615~665 MHz
Sensitivity: -94 dBm for 30 dB
Image Rejection: > 60dB
Frequency Stability: +0.005%
Modulation Mode: <110 mA
Maximum Transmitter Power: FM
Maximum Deviation Range: + 45KHz
Audio Frequency Response: 50Hz – 15KHz (+3dB)
S/N Ratio: > 105 dB
Audio Dynamic Range: > 100 dB
T.H.D: <0.5%
Operating Temperature: -10° Celsius to 55° Celsius
